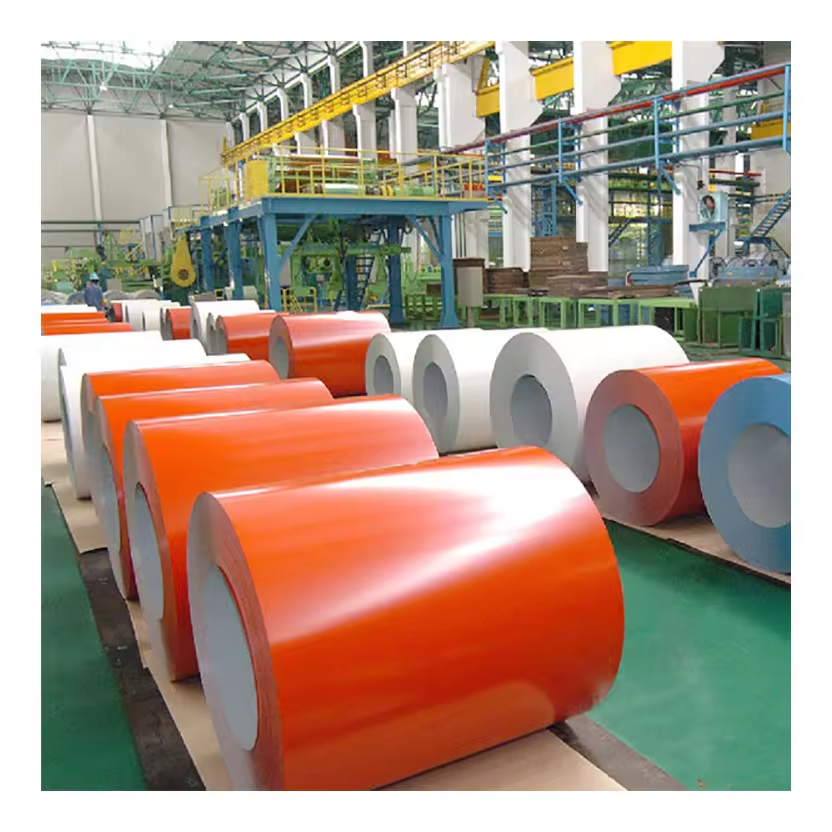

PPGI Color Coated Coils
Product ID : PPGI-002
Product Attributes :
- Thickness: 0.3 - 1.0mm
- Zinc Coating: 20-275 g/m2
- Range of paint film thickness: up surface 16um to 20um , back surface 6um to 10um
- Color: Customer's reqirements (refer RAL color series )
- Fading time: 8-25Years, According to the different color retention periods of paint quality
- Standard: AISI, ASTM, BS, DIN, GB, JIS
- Grade: SGLCC, DX51D, A653, SGLCH, Q235B
- Hardness: HRB60- HRB90, according customer requirement
- MOQ 4 ton, Suggest purchasing the entire roll
- Delivery Time: Withih 20-50days after signing contract
Product Description
Application Range:
Color Coated Coils boast a diverse application range, spanning from construction, where they are used for roofing, siding, and interior partitions, to the automotive industry, where they contribute to visually appealing car bodies and parts. Appliance manufacturers also rely on them for durable, stylish exteriors. Additionally, they find uses in signage, furniture, and even white goods, thanks to their combination of strength, corrosion resistance, and aesthetic appeal.

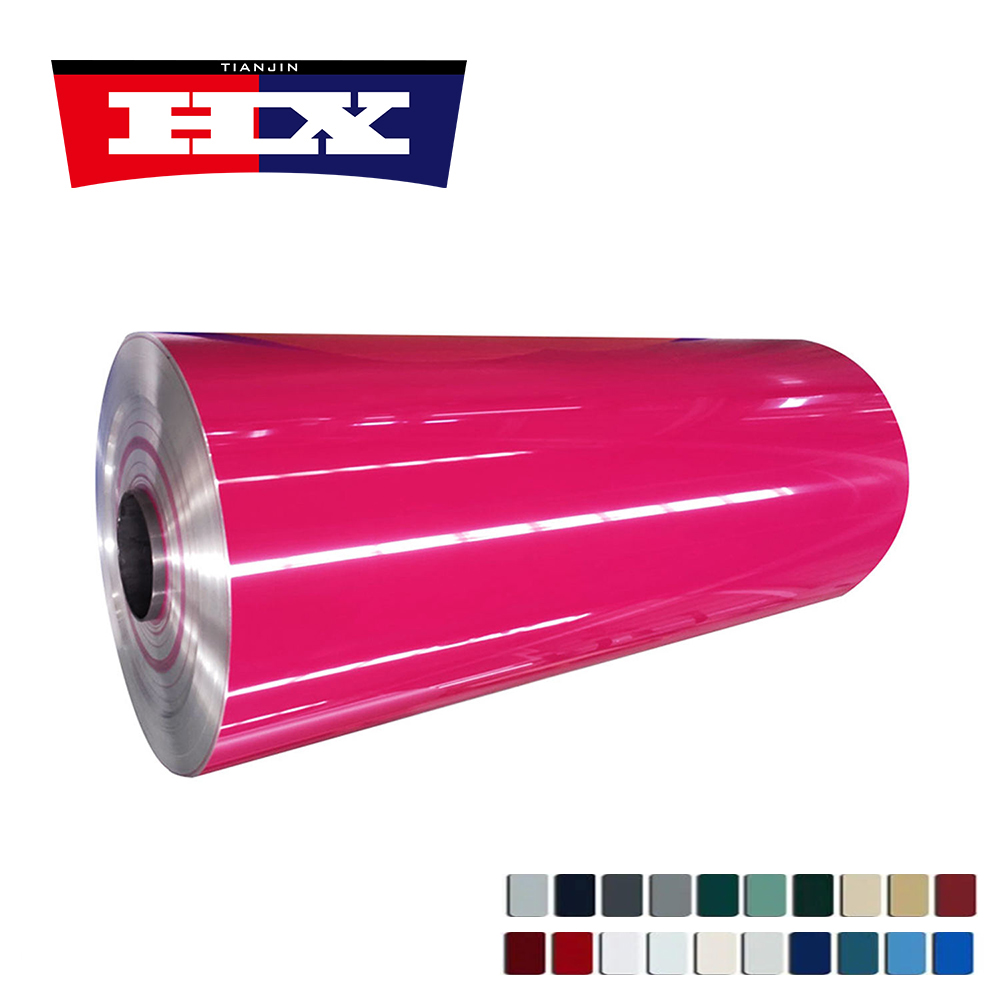

| Product Name: | color coated steel coil |

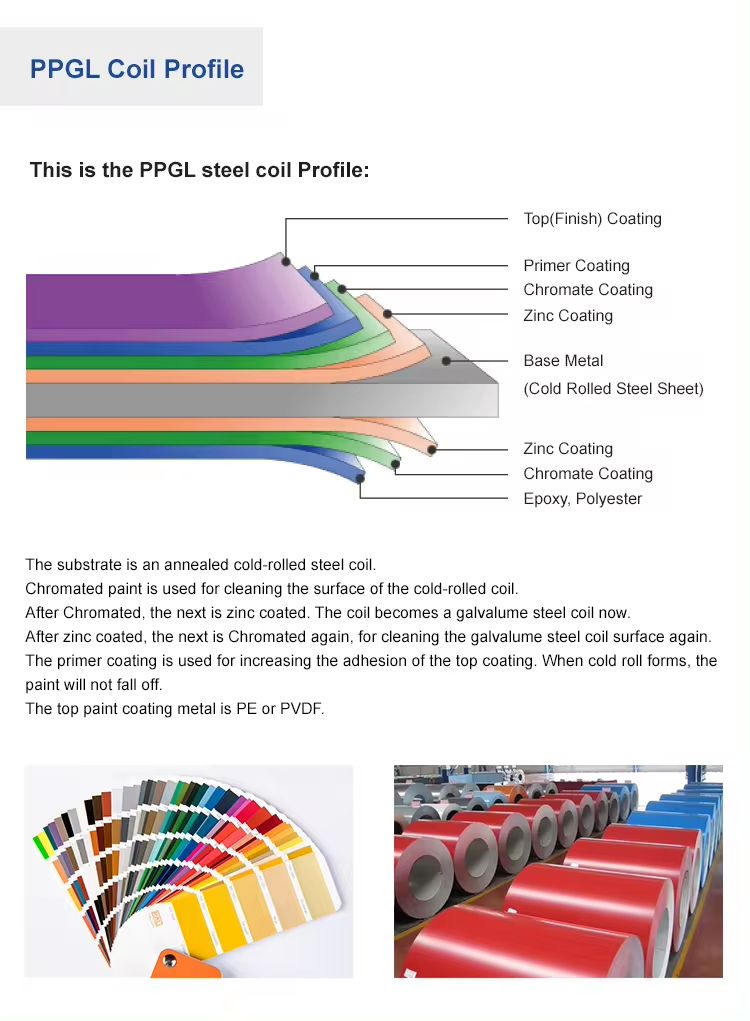

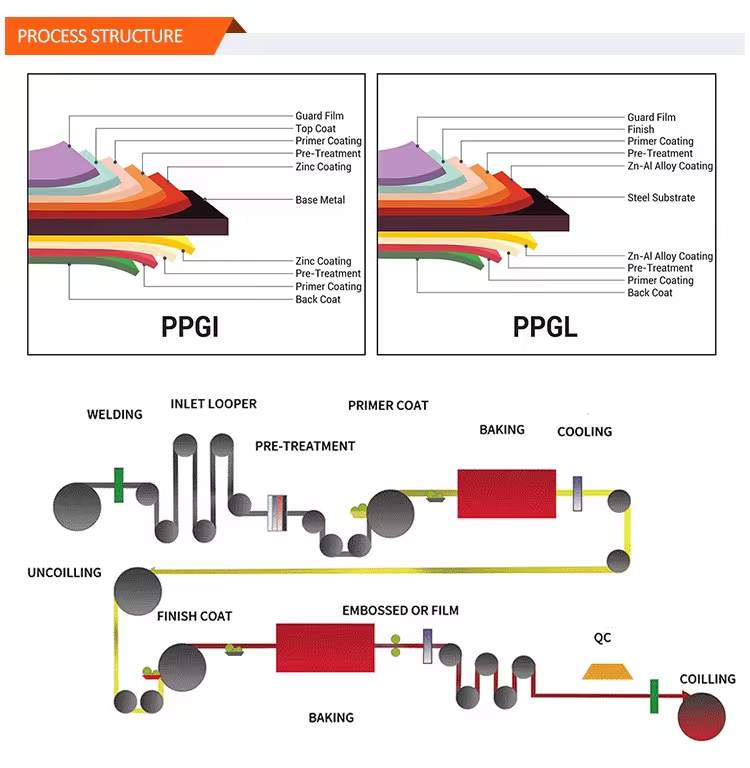

| Production process: | material selection, surface treatment, coating application, baking, quality inspection, and packaging |
| Thickness | 0.3 - 1.0mm |
| Zinc Coating: | 20-275 g/m2 |
| Range of paint film thickness | up surface 16um to 20um , back surface 6um to 10um |
| Color | Customer's reqirements (refer RAL color series ) |
| Fading time | 8-25Years, According to the different color retention periods of paint quality |
| Place of Origin: | Tianjin, China |
| Standard: | AISI, ASTM, BS, DIN, GB, JIS |
| Grade | SGLCC, DX51D, A653, SGLCH, Q235B |
| Hardness | HRB60- HRB90 ， according customer requirement |
| MOQ | 4 ton, Suggest purchasing the entire roll |
| Delivery Time: | Withih 20-50days after signing contract |
| Coil weight | 2-5 Tons/coil |

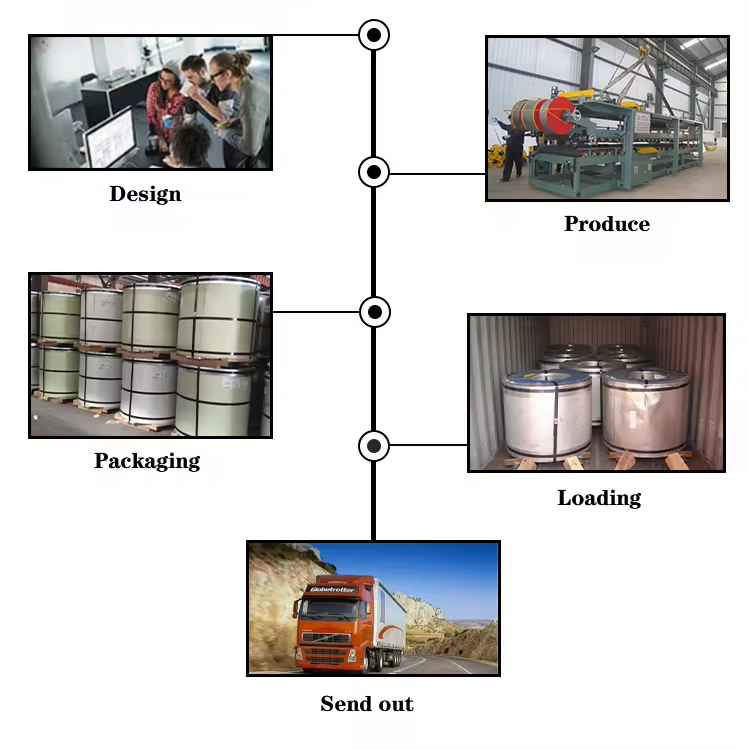

| Packing | Standard seaworthy export packing:3 layers of packing, inside is metal pail, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, wit inner coil sleeve. |
| Width: | 760mm-1250mm, according to customer's requirement |
| Coil ID | 508/610mm |
| Port Of Shipment | Tianjin, China |
Advantages:
- Aesthetic Versatility: A wide range of colors and finishes allows for customization to suit any design vision.
- Durability: The paint coating enhances corrosion resistance, prolonging the product's lifespan.
- Cost-Effective: Longevity and low maintenance requirements lead to cost savings over time.
- Easy Installation and Maintenance: Lightweight and easy to handle, with smooth surfaces for effortless cleaning.
- Eco-Friendly: Many color coatings are now formulated to be environmentally friendly and recyclable.
- Weather Resistance: Enhanced weatherability ensures performance in varied climatic conditions.
- Improved Energy Efficiency: Can be designed with thermal insulation properties, reducing energy consumption.
